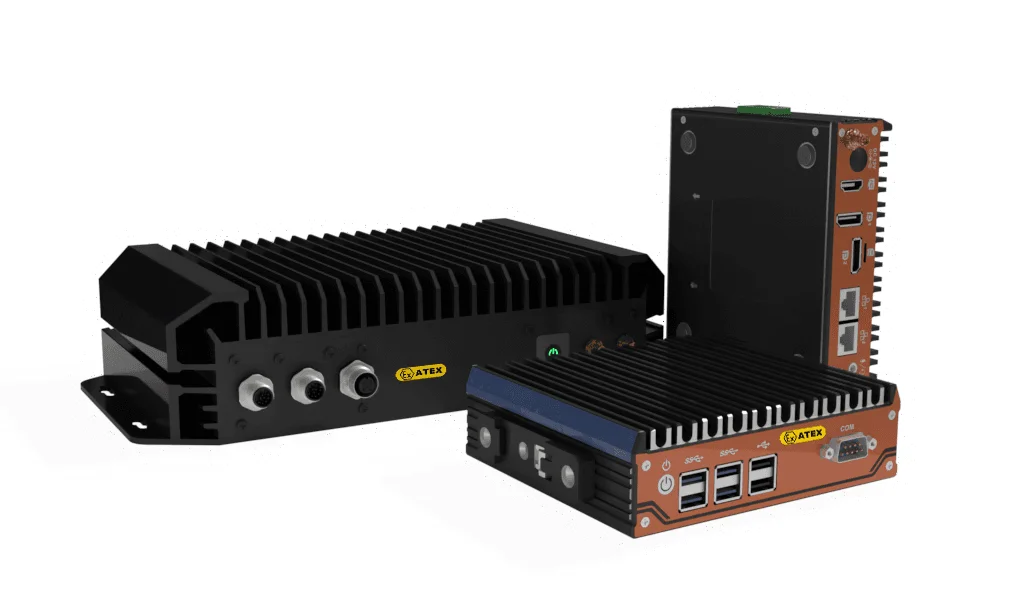

The Acura PowerBrick™ series is Acura Embedded Systems' versatile line of Hazloc Industrial PCs. At its core, the PowerBrick is a rugged Mini PC – a compact, powerful, and highly durable computer designed to operate reliably in challenging industrial environments where space is often limited, and conditions can be harsh.

Unlike standard office computers, the PowerBrick is built from the ground up to endure, perform, and integrate seamlessly into critical industrial applications.

1. What is the PowerBrick? A Core Definition

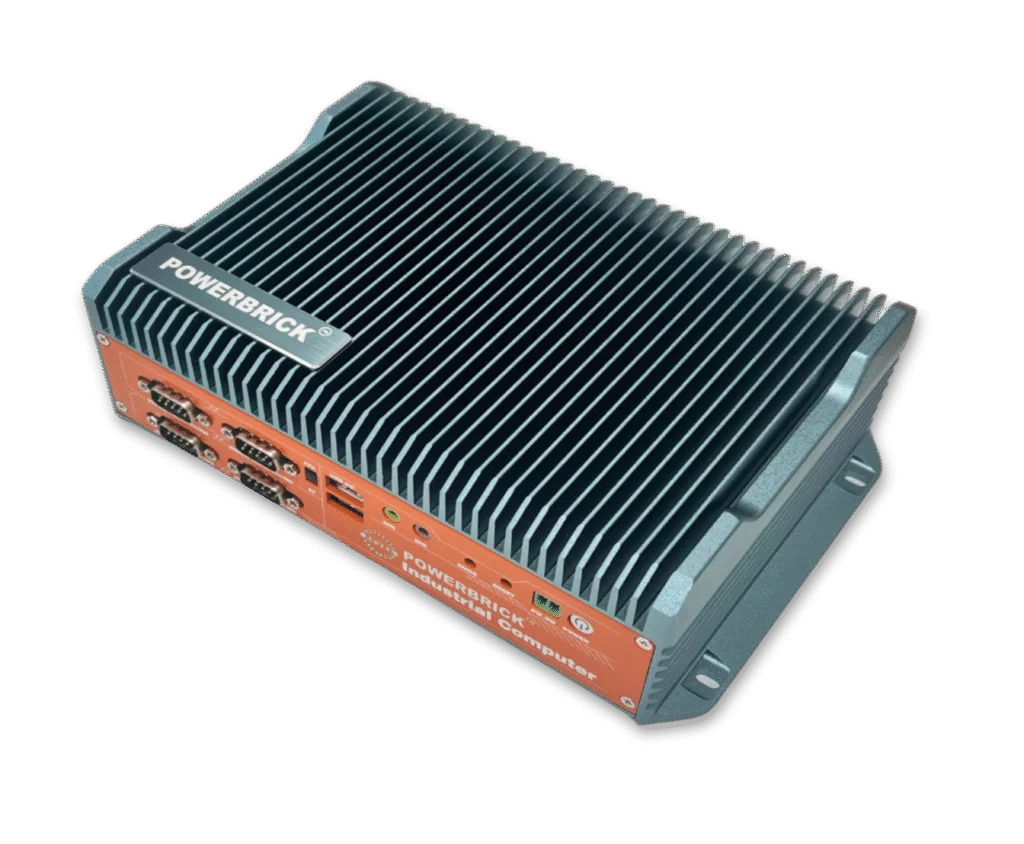

The PowerBrick is essentially a fully sealed industrial PC in a small, robust format. It's designed without external fans or openings, making it highly resistant to dust, water, and contaminants. Often referred to as an "Edge Computer," it processes data right where it's collected, reducing latency and enabling real-time decision-making.

Compact Power: Delivers high-performance computing in a space-saving package.

Certified Fanless Design: Ensures silent, efficient, and reliable operation without moving parts that can fail in dusty or vibrating environments.

Engineered for Reliability: Built to endure and perform in the most demanding conditions, including hazardous locations.

Versatile Deployment: Supports multiple installation configurations for smooth integration.

2. PowerBrick Models: Tailored for Specific Needs

Acura offers several PowerBrick models, each optimized for different performance levels and industrial requirements:

PowerBrick Mini:

Focus: Compact power, maximum efficiency. Ideal for space-constrained environments.

Processor: Intel J4125 Quadcore 2.0GHz.

Memory: Up to 16GB RAM.

Storage: SSD.

Video: Triple HD video output (1x HDMI, 2x DP).

Connectivity: 2x RJ45 GBE LAN, 2x USB 2.0, 4x USB 3.0, 1x RS232 serial, Wi-Fi, Bluetooth, 4G LTE SIM slot.

Operating Temp: -20°C to 60°C.

Weight: 1.76 lbs (0.8 KG).

Certifications: C1Z2, cULus, ATEX, CE, FCC.

PowerBrick DV:

Focus: High-power fanless industrial PC, advanced computing for extreme industries.

Processor: Intel Core i5/i7.

Memory: Up to 32GB RAM.

Storage: 1x M.2, 1x 2.5 inch slots.

Video: Dual HD video output (2x HDMI).

Connectivity: 2x 10/100/1000M LAN, 3x USB 3.0, 3x USB 2.0, 2x COM (RS232/485) serial, 1x SIM slot, Wi-Fi 6, BT (4G/LTE optional).

Operating Temp: -20°C to 60°C.

Weight: 2.42 lbs (1.1 KG).

Certifications: C1Z2, cULus, ATEX, CE, FCC.

PowerBrick GTG2:

Focus: High-power fanless industrial PC with Intel 13th Gen processing, engineered for industrial use.

Processor: Intel 13th Gen Core i5 or i7.

Memory: Up to 64GB RAM.

Storage: 1x NVME SSD, 1x 2.5" SATA (optional RAID).

Video: 1x HDMI, 1x VGA.

Connectivity: 4x Intel I211-AT 10/100/1000M LAN, 2x USB 2.0, 4x USB 3.0, 6x COM (RS232/RS422/485) serial, Wi-Fi 6, BT, 16x Pin GPIO.

Operating Temp: -20°C to 60°C.

Weight: 3.95 lbs (1.8 KG).

Certifications: C1Z2, CSA/UL, ATEX, CE, FCC, ISO Certified.

PowerBrick Slim:

Focus: High-performance computing, redefined for reliability in hazardous industrial applications.

Processor: Intel Quadcore i5 or i7.

Memory: Up to 32GB RAM.

Storage: SSD (removable, optional RAID).

Video: 1x HDMI, 1x VGA.

Connectivity: 4x Intel I211-AT 10/100/1000M LAN, 2x USB 2.0, 4x USB 3.0, 4x COM (RS232/RS422/485) serial, Wi-Fi 802.11 AX 6E, BT (4G/LTE optional).

Operating Temp: -20°C to 60°C.

Weight: 3.50 lbs (1.6 KG).

Certifications: C1Z2, CSA/UL, ATEX, CE, FCC.

PowerBrick X:

Focus: Cutting-edge performance for demanding vehicle integrations and other high-compute needs.

Processor: Intel Core Ultra 7 165H (16 cores / 22 threads, 3.8 GHz).

Memory: Up to 64GB DDR5 RAM (standard 32GB).

Storage: Up to 4TB SSD (standard 512GB), with RAID control.

Connectivity: 4x USB 3.2 ports, 2 COM ports, GPIO, HDMI/VGA display.

Special Features: 4 optional PoE ports to power dash cameras and other vehicle peripherals, vehicle ignition start (computer turns on with vehicle).

Operating Temp: -40°C to 60°C.

Manufacturing: Designed and manufactured in Canada.

PowerBrick XS (Sealed):

Focus: IP65 dust and water resistant, a fully sealed variant.

3. Core Components: Powering Industrial Operations

All PowerBrick models are built with carefully selected, high-quality components to ensure robust performance:

Processors (CPU): The "brain" of the computer. PowerBrick models offer a range of Intel CPUs, from efficient Celeron and J4125 Quadcore for essential tasks, to high-performance Intel i5 and i7, and the cutting-edge Intel Core Ultra 7 165H for the PowerBrick X. Our goal is to always integrate the latest generations of these CPUs for optimal speed and efficiency.

Memory (RAM): The computer's "short-term workspace." PowerBrick supports substantial RAM, from up to 16GB (DDR4) in the Mini, to up to 32GB (DDR4) in DV and Slim, and up to 64GB (DDR4 or DDR5) in GTG2 and PowerBrick X. More RAM means smoother multitasking and faster handling of applications.

Storage (SSD): The computer's "long-term memory." All PowerBricks use fast and durable SSDs (Solid State Drives), including M.2 NVMe SSDs for ultra-fast data access, with capacities up to 4TB. Optional RAID control provides data redundancy and improved performance for critical applications.

Power Input: Designed for industrial flexibility. PowerBrick models accept a wide range of DC input (9-36V DC or 12V DC), allowing direct power from vehicle batteries or industrial power sources. Some models, like the PowerBrick X, feature vehicle ignition start for seamless integration into fleets.

4. Durability & Environmental Resilience: Built to Endure

PowerBrick units are engineered to thrive in conditions that would destroy standard computers:

Operating Temperatures: Most models operate from -20°C to +60°C (-4°F to 140°F). The PowerBrick X extends this to -40°C to +60°C (-40°F to 140°F), ensuring performance even in extreme Canadian winters.

Construction: Built with durable Aluminum Alloy enclosures and a fanless design. This means no internal moving parts to break down, reducing weight and aiding heat dissipation.

IP Ratings & Certifications: Carry essential Hazloc and safety certifications like C1Z2, CSA/UL, ATEX, CE, FCC. Some models, like the PowerBrick XS, are IP65 dust and water resistant. The NEMA4X rating indicates protection against corrosion.

Vibration & Shock: Designed to withstand the constant vibration and occasional shocks common in industrial and vehicle environments.

5. Flexible Deployment & Applications

PowerBrick's compact size and robust design make it incredibly versatile:

Vehicle Integrated: Ideal for in-vehicle systems, handling shock, vibration, and environmental stress for police, ambulance, fire trucks, mining vehicles, and transportation fleets.

Processing Plants & Factories: Acts as the processor for industrial machines and systems, ensuring uninterrupted performance.

Mine Sites: Withstands dust, moisture, and temperature fluctuations for critical applications.

Remote Monitoring: Used in systems like remote pipeline monitoring.

Automation: Provides a reliable computing core for automation systems.

Mounting Options: Supports versatile mounting configurations including DIN rail, wall-mount, and VESA mount, ensuring seamless integration into any industrial infrastructure.

6. PowerBrick vs. Chinese Mini PCs: The Acura Quality Difference

While the market offers many "mini PCs" or "rugged PCs" from various manufacturers, particularly from China, Acura's PowerBrick stands apart due to its unwavering commitment to quality, certification, and long-term reliability.

True Industrial Quality & Design:

Proprietary Design: Unlike many generic Chinese mini PCs that use off-the-shelf, basic computer boards, Acura designs its own motherboards and power supplies. These are manufactured exclusively for us by trusted suppliers (from Taiwan, China, Germany), ensuring specific features, optimal heat management (crucial for fanless operation), and adherence to our rigorous standards.

Meticulous Assembly & Testing: Every PowerBrick unit is assembled and thoroughly tested in Canada. We have our own environmental chambers and vibration tables. We don't just rely on supplier claims; our managers conduct on-site inspections at manufacturing facilities abroad to verify quality before parts even arrive. This level of in-house control and testing is rarely found in mass-market Chinese options, which often prioritize cost over consistent quality.

Component Integrity: Acura ensures every component is properly secured, with epoxy on connectors and glue on every screw, and meticulous internal wiring management. This attention to detail ensures the unit withstands constant vibration and harsh conditions over years, unlike cheaper alternatives that may "cut corners" in assembly.

Uncompromising HazLoc Certification:

Verifiable Compliance: Many Chinese "rugged" PCs may claim durability or basic IP ratings, but they often lack the specific, verifiable, and independently tested Hazloc certifications (C1Z2, ATEX, IECEx, CSA/UL) that PowerBrick units carry. These certifications are expensive and rigorous, proving the unit's safety in explosive environments – a critical requirement, not a generic marketing term.

Continuous Recertification: Acura undergoes annual recertification for its systems, even as we integrate new, more powerful CPUs. This continuous investment ensures that our certifications are always current and valid for the latest technology, a practice rarely matched by mass producers who may certify a design once and then produce it for years without updates.

Longevity & Long-Term Value:

Designed for Years: PowerBrick units are designed to operate reliably for 5 to 10 years or more, far exceeding the typical lifespan of consumer-grade or lower-quality industrial PCs.

Upgradability: Our modular design and commitment to keeping components available for 5-10 years mean that customers can upgrade older PowerBrick systems (e.g., to a newer CPU) without replacing the entire unit, significantly lowering the Total Cost of Ownership (TCO). This contrasts sharply with many Chinese options that are often disposable or difficult/impossible to repair/upgrade.

In summary, while a Chinese mini PC might offer a lower upfront cost, the Acura PowerBrick provides unmatched reliability, verifiable safety, superior long-term value, and peace of mind – qualities that are paramount in critical industrial operations.

7. Fanless Design Explained: Why No Fans is a Huge Advantage

When you think of a typical computer, you probably imagine a fan whirring inside to keep it cool. But the Acura PowerBrick is designed to be fanless. For someone new to computers, this is a very important difference, especially in industrial settings.

What "Fanless"?:

Imagine your home computer or laptop. It has small fans inside that spin very fast to blow hot air out and pull cool air in. This keeps the internal parts from getting too hot, like a tiny air conditioner.

A "fanless" computer, like the PowerBrick, means it has no internal fans at all. It cools itself down without any moving parts inside.

How it Cools Without Fans:

The PowerBrick uses its entire metal casing (made of durable Aluminum Alloy) as a giant heat sink. Think of it like a car radiator. The heat from the internal components (like the CPU) is transferred directly to the metal casing, and then the casing radiates that heat away into the surrounding air. This is a very efficient and silent way to cool the computer.

Why Being Fanless is Crucial in Industrial Environments:

No Dust or Dirt Ingress: In industrial settings (factories, mines, oil rigs), there's often a lot of dust, dirt, and even corrosive particles in the air. If a computer has fans, these fans would constantly pull all that dust and dirt directly inside the computer, clogging up components and causing them to overheat or short-circuit. A fanless design means the PowerBrick is completely sealed, preventing any contaminants from entering. This is vital for its IP ratings (like IP65 for dust and water resistance).

No Moisture Ingress: Similar to dust, fans would also pull in moisture or water vapor, which can severely damage electronics. Being fanless allows the PowerBrick to maintain its fully sealed integrity, making it resistant to water jets and splashes.

No Moving Parts to Break: Fans are mechanical parts, and like any moving part, they can break down, especially in environments with constant vibration or shock. A fanless design means fewer points of failure, leading to higher reliability and less downtime for critical operations.

Silent Operation: Without fans, the PowerBrick operates completely silently. While this might not be the top priority in a noisy factory, it contributes to a cleaner, less distracting work environment.

Durability in Vibration: Fans are susceptible to damage from constant vibration. The solid-state, fanless design of the PowerBrick makes it inherently more durable in environments with heavy machinery or vehicle movement.

In essence, the fanless design of the PowerBrick is a core engineering choice that directly contributes to its extreme durability, long-term reliability, and ability to operate safely and effectively in the challenging conditions of industrial settings. It's a key reason why it's a "rugged" computer that truly lives up to its name.

8. Customization: Tailoring Your PowerBrick

Beyond its robust standard features, Acura offers various customization options for the PowerBrick series, allowing clients to tailor the units to their specific operational and aesthetic needs.

Physical and Aesthetic Customization:

Custom Colors: While the PowerBrick typically comes in a standard industrial color, Acura can provide custom colors for the chassis. This allows companies to match the computer to their branding or to easily identify their equipment within a larger fleet or facility.

Company Logo on Chassis: Acura can integrate the customer's company logo directly onto the PowerBrick's chassis. This enhances brand identity and makes the computer feel like a truly integrated, proprietary tool rather than a generic piece of hardware. This level of personalized branding reinforces the idea that the Acura PowerBrick is a dedicated part of the customer's operational ecosystem.

These customization options, combined with the PowerBrick's superior internal components and rugged design, ensure that it's not just a powerful industrial PC, but a seamlessly integrated and visually consistent asset for any demanding application.
