The Roughneck stands as the undisputed flagship product of Acura Embedded Systems, a testament to over 30 years of pioneering innovation in rugged, HazLoc-certified computing. More than just a computer, the Roughneck is a meticulously engineered solution designed to be the central operational tool in the most extreme and hazardous industrial environments, particularly within the Oil & Gas sector.

It embodies Acura's commitment to unparalleled performance, safety, and customization, consistently breaking barriers that competitors struggle to overcome.

1. What is the Roughneck? A Core Definition

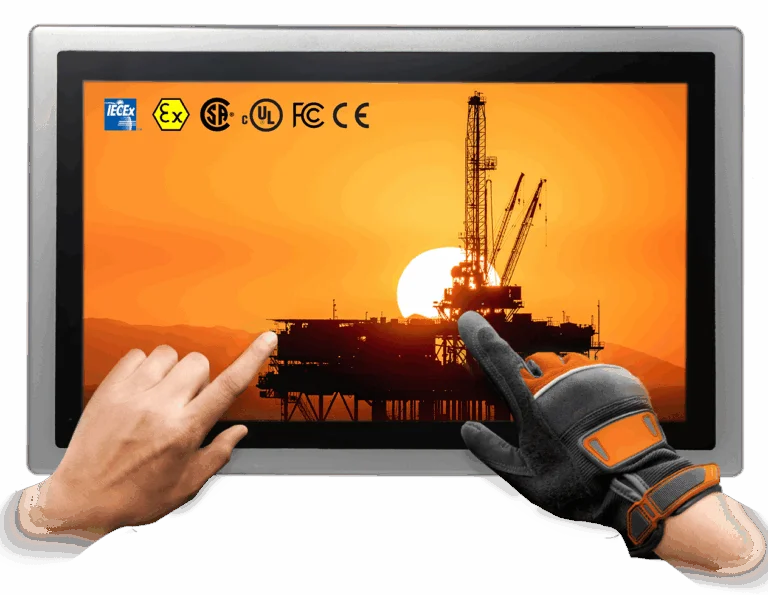

The Roughneck is a Customizable HazLoc Panel PC. This means it is an all-in-one computing unit featuring an integrated display and computer, designed for panel mounting or other flexible installations. Its core identity revolves around being:

Fully Sealed: Designed to prevent any ingress of dust, moisture, or contaminants.

HazLoc Certified: Engineered and tested to operate safely in hazardous locations where explosive gases or combustible dusts may be present.

High-Performance: Equipped with cutting-edge processors and technologies to handle demanding industrial applications.

Lightweight & Flexible: Despite its robust nature, it's designed for ease of deployment and adaptability.

Customizable: Its modular design allows for significant tailoring to specific customer needs.

2. Designed for the Extreme: Durability and Environmental Resilience

The Roughneck is purpose-built to withstand conditions that would destroy standard electronics.

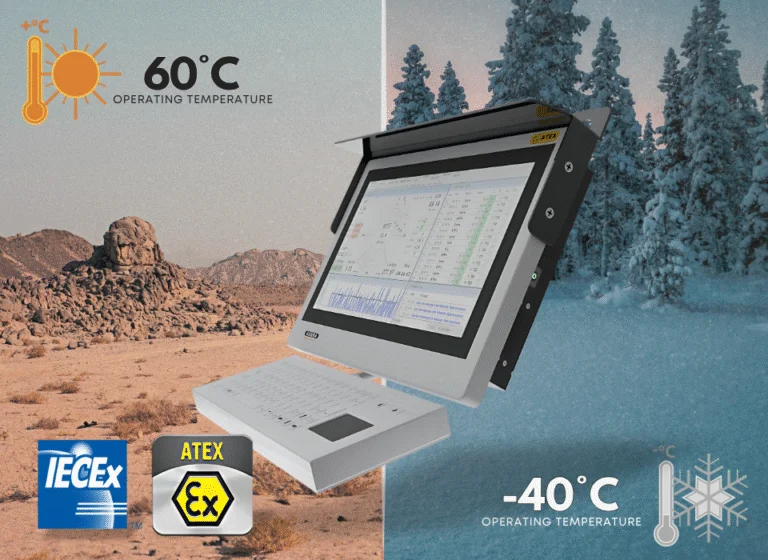

Extreme Temperature Operation: The Roughneck is designed for wide temperature ranges, operating reliably from -40°C to +60°C (-40°F to 140°F). With Acura's patented AirJet® Technology, its performance can be maintained even up to +70°C (158°F), ensuring unwavering functionality in scorching climates like Texas or the Middle East, as well as freezing conditions in Canada or Russia.

Superior Ingress Protection (IP Ratings):

The Roughneck boasts an IP65 rating (for 15.6" and 22" models) on all sides. This means it is completely dust-tight and protected against water jets (IP65).

This "fully sealed chassis" design, achieved through a unique vacuum sealing process (heating components before sealing to create internal compression upon cooling), ensures no moisture or dust can enter.

Its washable design allows for cleaning with pressure washers or even caustic sprays on the rig, a critical feature for maintaining hygiene and functionality in dirty, oily environments.

Robust Construction: The Roughneck features an aluminum anodized alloy frame, providing exceptional durability and heat dissipation. It's designed to withstand vibration and shock inherent in industrial settings.

Lightweight Design: Despite its ruggedness, the Roughneck is remarkably lightweight, with the 15.6" model averaging ~13 lbs (6 KG) and the 22" model averaging ~24 lbs (10.8 KG). This makes it easier to transport, install, and deploy in the field.

3. Uncompromising Performance: The Power Within

The Roughneck is equipped with advanced components to deliver superior processing power for critical industrial tasks.

Processors (CPU): It typically features Intel i5 or i7 CPUs (various generations, including 12th, 13th, 14th Gen). Acura is actively working towards integrating Intel i9 CPUs into the Roughneck within the next six months, aiming for server-kind processing power directly on the rig.

Memory (RAM): Supports up to 64GB of DDR4 RAM, ensuring smooth multitasking and efficient handling of large datasets.

Storage (SSD): Utilizes fast and durable SSD (Solid State Drive) technology, including M.2 NVMe SSD options up to 4TB, with optional RAID control for data integrity. Removable SSD options are also available.

AirJet® Technology: This patented, solid-state active cooling system is a core differentiator. It uses fanless piezoelectric technology to circulate air internally without touching the electronics, effectively moving heat out of the fully sealed unit. This prevents CPU throttling in extreme temperatures, leading to a 30-40% increase in sustained CPU performance compared to systems that slow down when hot.

4. HazLoc Certifications: The Standard for Safety

The Roughneck carries a comprehensive suite of HazLoc and other certifications, ensuring its safe and compliant operation globally.

Class 1 Division 2 (C1D2) / Zone 2 (Z2): Certified for environments where hazardous substances are present only under abnormal conditions.

ATEX & IECEx: International and European certifications for equipment in potentially explosive atmospheres.

NEMA 4X: High protection against dust, water jets, and corrosion.

IP65: Dust-tight and protected against water jets.

CSA/UL, CE, FCC, UKCA: Electrical safety and regional compliance certifications.

Pursuing Class 1 Division 1 (C1D1) / Zone 1 (Z1): Acura is actively developing a customizable and upgradable C1D1/Zone 1 computer, a groundbreaking effort that will offer a unique, high-performance solution for environments where hazardous substances are always present.

5. Connectivity: Bridging Operations to Data

The Roughneck offers versatile connectivity options, with extensive customization for seamless integration.

Customizable I/O Ports: The bottom plate of the Roughneck can be customized with the exact number and type of ports a customer needs. This includes:

USB: Multiple USB 2.0, 3.0, and 3.2 ports.

LAN: Gigabit Ethernet (RJ45 GBE) and 2.5 Gigabit LAN ports.

Serial Ports: RS232, RS485 for legacy equipment.

Video Outputs: HDMI, VGA, DisplayPort.

GPIO: General Purpose Input/Output.

Industrial/MIL-Grade Connectors: Sealed connectors like Amphenol and Turck, or specialized pin connectors for enhanced security (preventing unauthorized USB device connections).

Fiber Converters: For optical fiber connections, enabling high-speed, interference-resistant data.

Wireless Connectivity:

Wi-Fi: 802.11 AX 6E (Wi-Fi 6) for high-speed wireless networking.

Bluetooth: For short-range peripheral connections.

4G/LTE/900 MHz Radio: Optional modules for mobile broadband and reliable communication in complex industrial settings (900 MHz penetrates metal well). Acura pioneered internal integration of Microhard 900 MHz modems.

5G Capable Modems: Ready for next-generation cellular networks.

Power over Ethernet (PoE): The Roughneck can provide PoE output (optional 24V or 48V, or 4 dedicated PoE ports on the 22" model under certification). This allows the computer to power external devices like cameras or Wi-Fi antennas directly via the Ethernet cable, simplifying cabling and installation. Acura pioneered long-range Wi-Fi solutions (500 Mbps) with integrated PoE.

Power Input: Flexible power input, accepting 110-240V AC or 9-36V DC. The universal AC power input means it can be connected directly to power sources worldwide (110V in North America, 220V in Europe) without adapters, simplifying global deployment.

6. Unprecedented Custom Integrations: Solving Customer Pain Points

Acura's ability to integrate customer-specific boards and modules directly into the Roughneck is a core competitive advantage, transforming complex setups into single, streamlined tools.

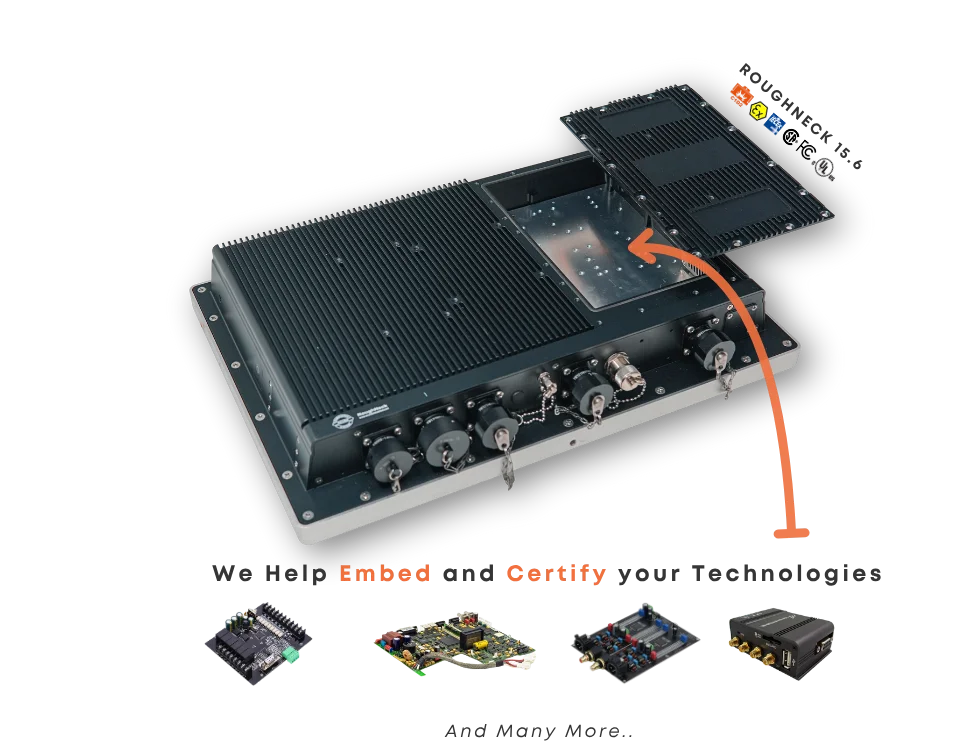

Internal Board Integration Space: The Roughneck's design includes dedicated space for integrating proprietary customer electronics such as:

PLC Controllers: For consolidated automation control.

MWD Decoders: Acura pioneered dual decoder boards inside the Roughneck, doubling data processing speed for directional drilling (e.g., Norelis decoders).

DAC Cards: For integrated data acquisition from sensors.

Modems: Internal integration of 4G/LTE, 5G, and 900 MHz radio modems (e.g., for Erdos Miller, Beyond Energy Services).

Gateways: For managing data flow in complex systems (e.g., for MPD applications with Premium Oilfield Services).

Customer Self-Integration: For uncertified systems, Acura provides a "window" on the backside of the computer, allowing customers to access and integrate their own boards, with Acura providing necessary connections (USB, power, RS232) and mounting plates.

Consolidation & Simplified Operations: This internal integration eliminates multiple external boxes, cables, and power supplies, drastically reducing points of failure, clutter, and installation complexity.

7. Key Applications and Use Cases

The Roughneck is primarily deployed in the Oil & Gas sector, serving critical functions:

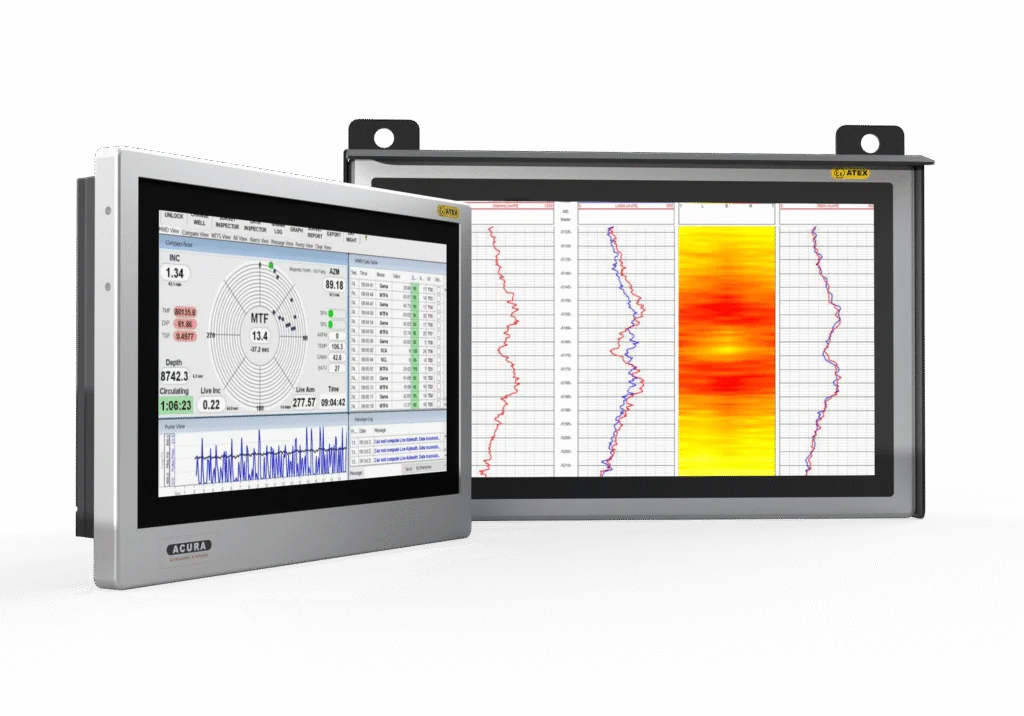

Rig Floor Computing: Used as the main control computer for drilling operations.

MWD (Measurement While Drilling): Acting as the controller interface for downhole sensors and software.

Directional Drilling: Enabling precise maneuvering of the drill bit with real-time data.

MPD (Managed Pressure Drilling): Controlling fluid flow during drilling.

Casing/Torque Measurement: Integrated with specialized devices to ensure precise pipe torque (e.g., for Cheetah Oilfield Supply).

Security & Surveillance: The 22" model with 4 PoE ports can power multiple high-megapixel cameras for rig surveillance (e.g., for Royal View).

Other Industries: Also suitable for demanding applications in mining and heavy manufacturing.

Deployment: Typically used directly on the rig (not in safe areas), mounted via a chain mount, and operated via its touchscreen.

8. Competitive Advantage: Why Roughneck Leads the Market

The Roughneck's success stems from Acura's relentless innovation and differentiation:

Pioneering Innovation: Acura is constantly "breaking barriers," being the first to integrate dual decoder boards, internal modems, and long-range Wi-Fi with PoE.

Rapid Technology Adoption: Our annual recertification cycle allows us to quickly integrate the latest CPU generations (e.g., 14th Gen Intel Core), a speed unmatched by competitors who may lag by 15-20 years.

Superior Design: Roughneck units are significantly lighter and slimmer than competitors' products, which can be double the size and weight.

Unmatched Customization: Our ability to integrate customer-specific boards and provide flexible I/O layouts is a unique selling proposition.

Comprehensive Solution: We don't just sell a computer; we provide a full service and support ecosystem, from custom software images to a 3-year "Bumper to Bumper" warranty (covering accidental damage), making Acura an indispensable part of the customer's team.

Longevity & Upgradability: Designed to last 5-10 years, with modularity allowing for CPU/component upgrades of older systems, reducing total cost of ownership.

The Acura Roughneck is more than just a rugged computer; it's a strategic asset that empowers operations, enhances safety, and drives efficiency in the world's most challenging industrial frontiers.
