In the demanding world of industrial computing, robust and versatile connectivity is as crucial as the hardware itself. Acura Embedded Systems designs its products to be the central nervous system of complex operations, ensuring seamless data flow, communication, and control in even the most challenging environments.

This section will delve deep into the various connectivity options Acura offers, explaining each type, its purpose, and how our innovative approaches provide unparalleled flexibility and performance. We will also cover Power over Ethernet (PoE) and our extensive customization capabilities for connectors.

1. Wired Connectivity: The Backbone of Industrial Data

Wired connections provide stable, high-speed, and secure data transfer, often preferred for critical, fixed installations.

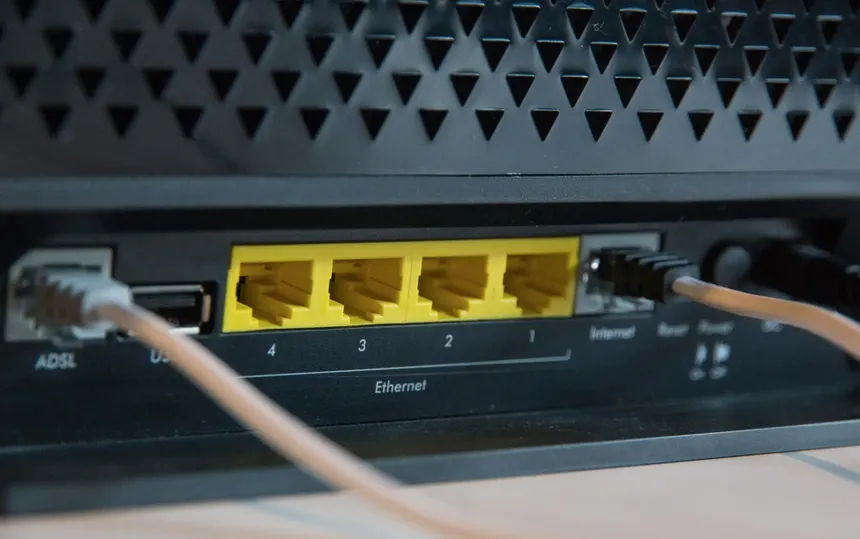

LAN (Local Area Network) / Ethernet (RJ45):

What it is: This is the most common type of wired network connection, using standard Ethernet cables with RJ45 connectors. It forms the backbone of local networks, connecting computers, servers, and other network devices.

Acura's Offerings: Our products, like the PowerBrick and Roughneck, feature multiple LAN ports, including Gigabit Ethernet (GBE) and even 2.5 Gigabit LAN for lightning-fast networking. This ensures rapid data transfer for real-time applications and large data volumes.

Why it matters: Essential for connecting to local control systems, industrial networks, and providing high-bandwidth communication within a facility or rig.

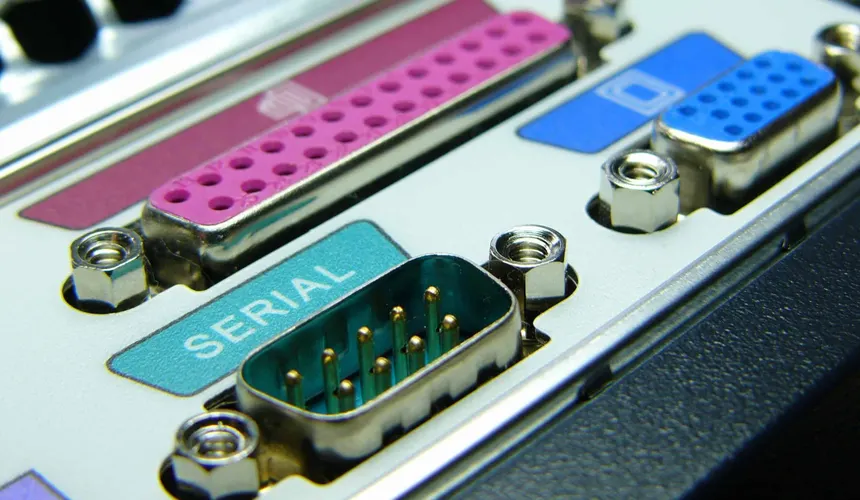

Serial Ports (RS232, RS485, RS422):

What it is: Older but still widely used in industrial settings, serial ports are used for communicating with legacy equipment, sensors, Programmable Logic Controllers (PLCs), and other industrial devices. RS485 and RS422 are particularly robust for longer distances and noisy environments.

Acura's Offerings: Our industrial PCs often include multiple COM (serial) ports, supporting standards like RS232, RS485, and RS422. This ensures broad compatibility with a vast installed base of industrial machinery.

Why it matters: Critical for direct control and data acquisition from specialized industrial machinery that may not use modern Ethernet protocols.

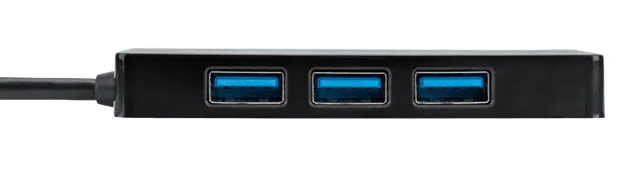

USB (Universal Serial Bus):

What it is: A ubiquitous standard for connecting a wide range of peripherals, from keyboards and mice to external storage and specialized industrial sensors.

Acura's Offerings: We provide multiple USB ports, including faster versions like USB 3.0 and USB 3.2, ensuring compatibility with modern devices and high-speed data transfer for data logging or external storage.

Why it matters: Offers versatile connectivity for various input devices, data transfer, and temporary connections for maintenance or configuration.

Video Outputs (HDMI, VGA, DisplayPort, DVI mini DV):

What it is: These ports are used to connect the computer to external displays, such as monitors, projectors, or industrial screens.

Acura's Offerings: Our systems provide a variety of video outputs like HDMI, VGA, and DisplayPort, ensuring compatibility with diverse display technologies. Some older or specialized units might also support DVI mini DV.

Why it matters: Enables operators to view data, control interfaces, and monitor processes on larger or multiple screens, enhancing situational awareness and operational efficiency.

Fiber Converters (Optical Fiber):

What it is: Optical fiber uses light to transmit data through thin strands of glass or plastic. It offers significantly higher bandwidth and is immune to electromagnetic interference (EMI), which is common in industrial environments.

Acura's Offerings: We can provide solutions with fiber converters, allowing our computers to connect to fiber optic networks.

Why it matters: Ideal for high-speed, long-distance data transmission in electrically noisy industrial settings, ensuring data integrity and reliability.

2. Wireless Connectivity: Freedom and Remote Access

Wireless technologies provide flexibility, mobility, and enable remote operations, crucial for distributed assets and mobile workforces.

Wi-Fi (Wireless Fidelity):

What it is: A common technology for wireless local area networking, allowing devices to connect to the internet or other network devices without cables.

Acura's Offerings: Our products feature advanced Wi-Fi standards like 802.11 AX (Wi-Fi 6), which offers faster speeds, lower latency, and better performance in crowded network environments.

Why it matters: Provides flexible network access for mobile operators, data synchronization, and connectivity in areas where running cables is impractical.

Bluetooth (BT):

What it is: A short-range wireless technology used for connecting peripherals like headsets, keyboards, or specialized sensors over short distances.

Acura's Offerings: Our systems include Bluetooth capabilities for convenient wireless peripheral connections.

Why it matters: Enables cable-free connections to various accessories, enhancing operator comfort and reducing cable clutter.

4G/LTE & 5G (Cellular):

What it is: Mobile broadband technologies that use cellular networks to provide internet access over long distances. LTE (Long-Term Evolution) is a 4G standard, and 5G is the latest, fastest generation.

Acura's Offerings: Many of our computers have optional or built-in 4G/LTE modules, with our modems also being 5G capable. This allows for remote monitoring and access.

Why it matters: Crucial for remote sites (like oil rigs) where wired internet is unavailable, enabling remote diagnostics, data transmission to central operations centers, and remote service access, even when rig companies have restricted local network access due to security.

900 MHz Radio (Microhard Modems):

What it is: A specific radio frequency used for wireless communication, particularly effective in industrial environments. Microhard modems are a well-known brand in this space. While older and slower (around 1 Mbps), its frequency has unique propagation characteristics.

Why it matters: The 900 MHz frequency is excellent for penetrating metal structures and "bouncing" signals around obstacles, making it highly reliable for communication in complex industrial settings where Wi-Fi signals might struggle.

Acura's Innovation: Acura pioneered integrating Microhard 900 MHz modems directly inside our computers. This eliminated the need for bulky, expensive external boxes, simplifying deployments and reducing points of failure.

LoRaWAN (Long Range Wide Area Network):

What it is: A low-power, wide-area networking protocol specifically designed for IoT (Internet of Things) devices that need to send small amounts of data over long distances with minimal power consumption.

Acura's Offerings: Used in our AcuSense mining IoT solutions for trailing cable management.

Why it matters: Enables efficient, long-range, low-data-rate communication for sensors in remote or expansive industrial environments like open-pit mines, crucial for asset tracking and condition monitoring.

3. Power over Ethernet (PoE): Simplifying Power and Data

Power over Ethernet (PoE) is a revolutionary technology that allows network cables (Ethernet cables) to carry electrical power simultaneously with data.

What it is: Instead of needing a separate power cable and a data cable for a device, PoE allows a single Ethernet cable to do both jobs.

How it works: A PoE-enabled device (like an Acura computer with PoE output) sends power over the unused wires within the Ethernet cable to a compatible device (like a camera or an access point).

Acura's Innovation with PoE:

Acura developed long-range Wi-Fi solutions (500 Mbps) that are 500 times faster than older 900 MHz radios. Crucially, we integrated PoE capabilities directly into our computers. This means our computers can power external Wi-Fi antennas (like more cost-effective Ubiquity antennas) or other peripherals directly, eliminating the need for separate power sources and additional cabling. This was a significant "barrier-breaking" innovation.

Our Roughneck 22-inch model is being developed with four PoE ports, enabling it to power multiple high-megapixel dash cameras or other vehicle peripherals directly. This expands its utility into security and surveillance solutions for rigs and fleets, simplifying installation and reducing cable clutter.

Why it matters:

Reduced Cabling: Fewer cables mean a cleaner, safer, and less cluttered installation.

Simplified Installation: Eliminates the need for separate power outlets near devices.

Cost Savings: Reduces material and labor costs associated with installing separate power infrastructure.

Flexibility: Allows devices to be placed in locations where power outlets are inconvenient or unavailable.

4. Connector Customization on the Roughneck: Tailored to Your Needs

While our products come with a standard set of robust, certified connectors, Acura's core strength lies in our ability to customize the I/O (Input/Output) layout, particularly on our flagship Roughneck series. This ensures the computer integrates perfectly with the customer's existing tools and environment.

Endless Possibilities: We work with the customer to understand their precise needs for connectors. We have a wide range of certified connectors that have undergone rigorous testing for pressure, temperature, heating, and cooling.

Standard vs. Pin Connectors:

Standard Connectors: Like those found on laptops (e.g., direct LAN or USB ports), these offer easy access and are popular for their convenience.

Pin Connectors (Industrial/MIL-Grade): These are more specialized, often sealed, and require professional soldering if a cable breaks. However, they offer enhanced security. Some customers prefer them because they prevent unauthorized users from easily plugging in USB sticks or other devices, thus maintaining the integrity and security of the system.

Custom Layouts: The bottom plate of the Roughneck is designed to be fully customizable. Customers can specify:

The number of connectors (e.g., "we need only two connectors," "we need four LAN ports, or two LAN ports," "we need more USB ports").

The type of connectors (e.g., RS232, fiber optic converters).

Why it matters: This level of customization ensures that the Roughneck is not just a computer, but a perfectly integrated component of the customer's unique operational ecosystem, eliminating the need for external adapters or complex wiring solutions and further reducing potential points of failure.

Acura's comprehensive approach to connectivity, from robust wired options to innovative wireless solutions and unparalleled customization, ensures that our industrial computers are always connected, always communicating, and always empowering our customers' critical operations.
